Telephone Integration for MS CRM 4.0

Text/HTML

Telephone Integration for MS CRM 4.0

Telephone Integration
connects your telephone system(PBX) with Microsoft CRM 4.0.

Incoming Calls
If an incoming call is detected, a window pops up from the taskbar displaying details of the caller. The information shown in this balloon depends on the server-settings and if the number can be found within CRM. If so, it shows up e.g. name, number, e-mail address, etc.. and the regarding entry is opened automatically.

Outgoing Calls
It’s possible to start a call directly from within CRM. Therefore a new button is placed in CRM.

With a click a new dialogue which states all available numbers of the regarding CRM-record (e.g. account, contact, lead…) is opened and users can choose the number to dial and start the call immediately.

Furtheron users have got the possibility to use the “direct call” functionality of the Telephone Integration balloon.

The call can be started from the balloon. Recent used numbers are accessible in the context menu.

Integration
TI provides three interfaces to connect your phone system with MS CRM.
All available features are supported with each integration, thus, TI-functionalities do not depend on the interface.

Direct connection via TAPI (requires TAPI driver)
OCS (Office Communications Services)-integration
Skype integration

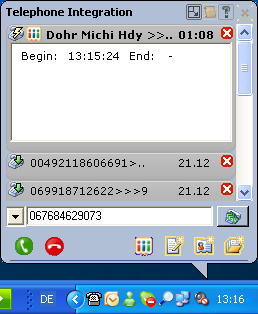

Visualization
Telephone Integration provides two visualization options:

Simple Balloon: Shows up basic caller information. Other options are hidden for better performance. The Popup is similar to the Microsoft TM Outlook Email Popup

Professional Balloon: Displays detailed caller information and time for the actual and most recent calls (e.g. the 10 last ones).
Additionally it shows up all options, like “open record, create account, create contact, create activity” and the “direct call”-box.

Activities
The Add-on is capable to create activities on both, incoming and outgoing calls. It’s possible to set the behavior on each client and decide if a new phone call activity should be created / stored automatically on lifting the earphone, if a new activity should be created for unrecognized users too or if a new e.g. Contact should be created if the caller is unknown.

History
Telephone Integration keeps detailed track on previous calls. This allows to analyze calling times and and quickly call back by selecting any previous phone call. Additionally, the history allows users to create contacts, account, phone call activities subsequently.

Offline capability
There is no limitation on our Telephone Integration when a user goes offline with CRM.

Successfully tested on:

ALCATEL OmniPCX Office
Nortel BCM 50
Siemens HiPath 3550 V5.0 / Hipath 3000
3com VOIP system, SuperStack 3 NBX Network Telephony
Televantage 6
Avaya S8500 Communication Manager 3.1
Auerswald Commander Basic 2
Cisco Call Manager
Asterisk with xTelsio-TAPI-driver
...

Technical conditions
OCS or Skype or TAPI 2 or TAPI 3 for direct connection

Licensing

	"Normal" license			"per User" license
Product	Price	Amount (minimum)	Support & Maintenance per year /license	Price	amount (minimum)	Support & Maintenance per year/license
TI Server (5 CALs incl.)	600€	*5	110€	600€	5	110€
TI Client CAL	110€		22€	110€		22€

"Normal" license(*1): Requires as many licenses as there are active users in CRM:
"Per User" license: If you do not want to purchase a license for all your users you should take the per user model. The limitation you have with this model is that you have to purchase initially at least 10 licenses.

Prices exclusive of VAT
